JN200

This product has the characteristics of compact structure, small size and high efficiency. The power end adopts forced lubrication. The high-speed shaft and crankshaft are driven by herringtooth gears. The transmission is stable and reliable, the friction coefficient is reduced, the lubrication performance is improved, the noise is low, and the temperature rise of the power end is low. Suitable for long-term continuous work. The hydraulic end is easy to disassemble and easy to maintain. It is suitable for ultra-high pressure water jet cleaning, metal cutting, ship cleaning and rust removal, and condenser, heat exchanger, reactor cleaning in chemical plants, sugar mills, power plants, etc. Can also be used to transport water, emulsion and other similar water liquid.

Keywords:

Classification:

Water injection pump

Scavenging pump for pipes and radiators

wechat

+86-15620690516

E-mail:

info@junengpump.net

Inquiry

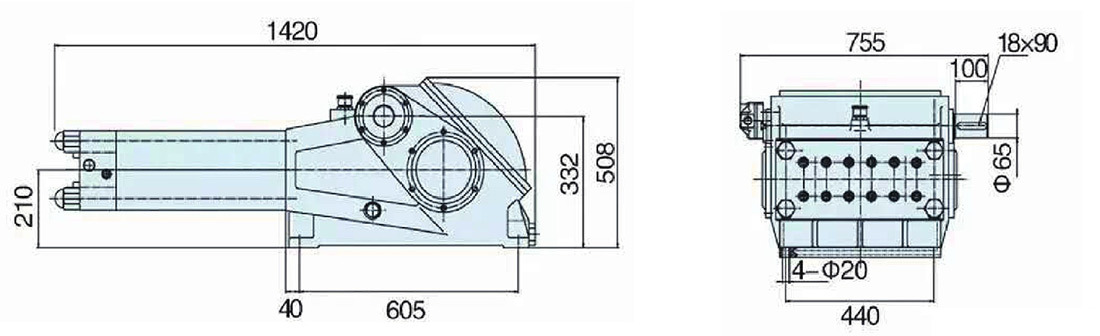

Reference dimensions

Type JN200 (with motor) three-plunger high-pressure pump type spectrum table I

	Input revolution r/min 1480		Pump speed	366	Speed ratio	i=4.04
	Input revolution r/min 1480		Maximum output pressure at rated power MPa
	theoretical flow		110kW	132kW	160kW	200kW
	L/min	m³/h	110kW	132kW	160kW	200kW
17.46	31	1.86	190	220	260	280
20.64	44	2.64	132	160	180	210
22.23	51	3.06	115	140	160	180
24	59	3.54	100	120	140	150
26	70	4.2	80	100	120	130
28	81	4.86	70	90	100	115
30	93	5.58	62	80	87	100
32	105	6.3	55	70	78	85
34	119	7.14	49	60	68	75
36	134	8.04	44	52	60	68
38	149	8.94	40	48	55	61
40	165	9.9	35	42	50	55
42	182	10.92	32	38	45	50
45	209	12.54	28	35	39	43
48	238	14.28	24	31	34	38
50	258	15.48	22	28	31	35
55	312	18.72	18	23	26	28

JN200 type (with diesel engine) three plunger high pressure pump type spectrum table II

Plunger Diameter mm	Input revolution r/min 1800		Pump speed	389	Speed ratio	=4.619
	Input revolution r/min 1800		Maximum output pressure at rated power MPa
	theoretical flow		110kW	132kW	160kW	200kW
	L/min	m³/h	110kW	132kW	160kW	200kW
17.46	33	1.98	175	220	250	280
20.64	46	2.76	125	160	180	200
22.23	54	3.24	108	1.36	160	180
24	63	3.78	92	116	130	150
26	74	4.44	80	98	110	130
28	86	5.16	68	85	95	110
30	98	5.88	60	74	85	98
32	112	6.72	52	65	72	85
34	127	7.62	45	57	64	75
36	142	8.52	40	51	58	68
38	158	9.48	36	46	52	61
40	175	10.5	33	41	46	55
42	193	11.58	30	37	42	50
45	222	13.32	26	32	37	43
48	253	15.18	23	28	32	38
50	274	16.44	21	26	30	35
55	332	19.92	17	22	25	29

JN200 type (with motor) three plunger high pressure pump type spectrum table three

Plunger Diameter mm	Input revolution r/min 1480		Teach speed	320	Speed ratio	i=4.619
	Input revolution r/min 1480		Maximum pressure at rated power, MPa
	theoretical flow		90kW	110kW	132kW	160kW
	L/min	m³/h	90kW	110kW	132kW	160kW
17.46	27	1.62	180	210	250	280
20.64	38	2.28	130	150	180	205
22.23	44	2.64	110	130	155	180
24	52	3.12	95	110	140	152
26	61	3.66	82	92	120	130
28	70	4.2	71	82	100	112
30	81	4.06	61	71	90	96
32	92	5.52	52	62	80	86
34	104	6.24	47	54	70	76
38	117	7.02	42	48	60	68
38	130	7.8	38	43	55	60
40	144	8.64	33	40	50	55
42	159	9.54	30	36	45	50
45	183	10.98	27	31	40	43
48	208	12.48	24	27	35	38
50	226	13.56	22	25	32	35
55	273	16.38	18	21	26	29

JN200 type (with diesel engine) three plunger high pressure pump type spectrum table four

Plunger Diameter mm	Input revolution r/min 1800		Pump speed	445	Speed ratio	i=4.04
	Input revolution r/min 1800		Maximum output pressure at rated power MPa
	theoretical flow		110kW	132kW	160kW	200kW
	L/min	M²/h	110kW	132kW	160kW	200kW
17.46	38	2.28	150	190	220	250
20.64	53	3.18	108	135	155	180
22.23	62	3.72	93	118	130	155
24	72	4.32	80	100	115	130
26	85	5.1	68	85	98	110
28	98	5.88	58	74	85	98
30	113	6.78	51	64	74	85
32	128	7.68	45	57	64	75
34	145	8.7	40	50	58	66
36	162	9.72	35	45	50	58
38	181	10.86	31	40	45	52
40	201	12.06	28	36	41	47
42	221	13.26	26	33	37	43
45	254	15.24	22	28	32	37
48	289	17.34	20	25	28	33
50	314	18.84	18	22	26	30
55	380	22.8	15	19	22	25

Suggestion: considering the economic fuel consumption of diesel engine, the power in the table is multiplied by 1.25 to calculate the power when selecting diesel engine
