3D1

It is suitable for pipeline cleaning, industrial cleaning, sand cleaning, rust removal, liquid transmission, engineering tunneling, etc., as well as various rubber pipes, metal pipes, and pumps for pressure testing of oil field drilling equipment. Can pump water, emulsion, can also pump other chemical properties of the liquid.

Keywords:

Classification:

Water injection pump

Scavenging pump for pipes and radiators

wechat

+86-15620690516

E-mail:

info@junengpump.net

Inquiry

Product Introduction

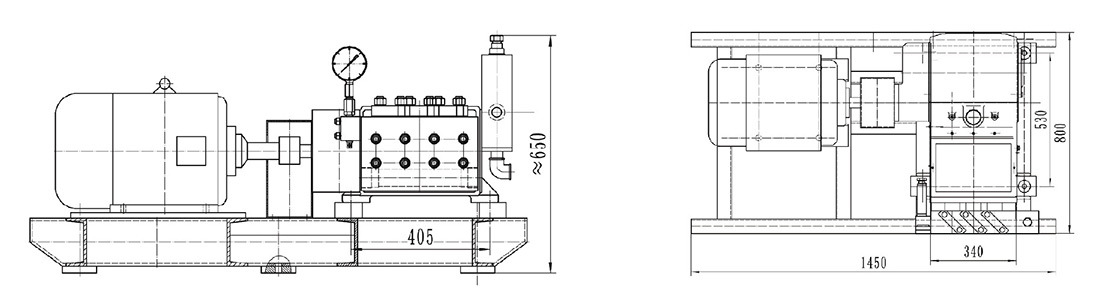

Reference dimensions

3D1 Pressure and Flow Chart

Enter the number of revolutions r/min		1480
Pump speed		400		Speed ratio			i=3.65		Plunger Diameter mm	Pump speed		500		Speed ratio			i=2.92
Power kW		7.5 11			15	18.5		22		Power kW		7.5	11		15	18.5		22
theoretical flow		Maximum output pressure at rated power (MPa)								theoretical flow		Maximum output pressure at rated power (MPa)
L/min	m⁹/h									L/min	m³/h
25	1.5	15	22		One	One		One	22	32	1.92	12	18		25	One		One
30	1.8	13	18		25	One		One	24	38	2.28	10	15		22	24		28
32	1.92	12	17		22	One		One	25	40	2.4	9	14		18	24		27
40	2.4	9	14		18	24		27	28	50	3	8	11		15	18		22
48	2.88	8	12		16	20		23	30	60	3.6	7	10		13	16		18
55	3.3	7	10		14	17		20	32	65	3.9	6	9		11	14		17
66	3.96	6	9		12	15		17	35	80	4.8	5	7		10	12		14
85	5.1	5	7		9	11		13	40	105	6.3	4	6		8	9		11
105	6.3	4	6		8	9		11	45	135	8.1	3	4		6	7		8
