BZW120/65

BZW120/65 water injection pump is our company's leading plunger pump type supporting underground explosion-proof motor. The coupling is directly connected, the structure is compact, the bearing bush structure is adopted between the crankshaft and the connecting rod, and the forced lubrication system is configured to ensure that the crank part is fully lubricated and suitable for continuous work. The structure of the hydraulic end is optimized, and the pump head does not need to be disassembled to replace the wearing parts, which is convenient for use in occasions without hoisting facilities. The plunger sealing part is equipped with a cooling system, which prolongs the service life of the plunger and the seal.

Keywords:

Classification:

Hydraulic punching pump

Water injection pump

Pump for roof pre-cracking

wechat

+86-15620690516

E-mail:

info@junengpump.net

Inquiry

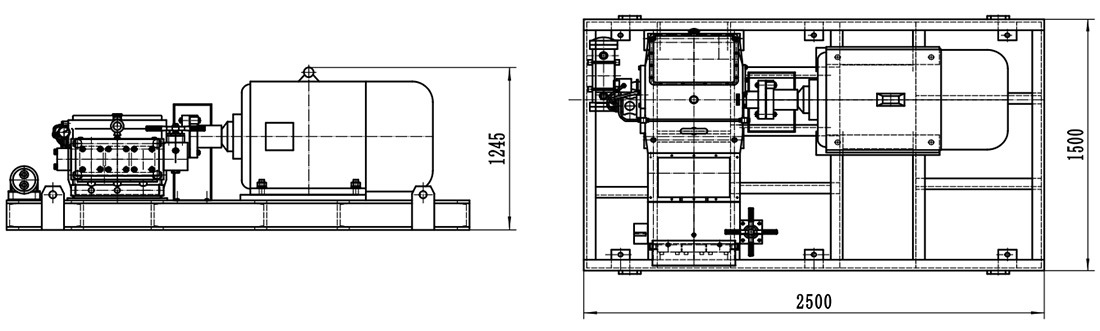

Reference dimensions

Serial Number	Project Name		Unit	Parameters
1	Model		/	BZW120/65
2	Rated flow		L/min	120
3	Rated pressure		MPa	65
4	Rated pump speed		Times/min	366
5	Plunger diameter		mm	35
6	Plunger stroke		mm	120
7	Number of Plungers		One	3
8	Overall dimension		mm	2500 × 1500 × 1245
9	Weight of whole machine		kg	2200
10	Motor	Model	/	YBKE3-315L1-4
11		Rated power	kW	160
12		Rated pressure	V	660/1140
13		Rated speed	r/min	1480

Basic parameters

Table 1 Basic parameters of water injection pump

Serial Number	Project Name		Unit	Parameters
1	Model		/	BZW125/50	BZW160/40	BZW120/65	BZW160/63	BZW125/80
2	Rated flow		L/min	125	160	120	160	125
3	Rated pressure		MPa	50	40	65	63	80
4	Rated pump speed		Times/min	366	366	366	366	366
5	Plunger diameter		mm	35	40	35	40	35
6	Plunger stroke		mm	120	120	120	120	120
7	Number of Plungers		One	3	3	3	3	3
8	Number of teeth of large gear		One	93	93	93	93	93
9	Number of pinion teeth		One	23	23	23	23	23
10	Noise		dB（A）	103	103	103	104	104
11	Volumetric efficiency		%	88	88	88	91	91
12	Total efficiency		%	81	81	81	82	82
13	Overall dimension		mm	2500x1500x1130	2500x1500x1130	2500x1500x1245	2500x1500x1245	2500x1500x1245
14	Weight of whole machine		kg	2100	2100	2200	2200	2200
15	Electricity Move Machine	Model	/	YBKE3-315M-4	YBKE3-315M-4	YBKE3-315L1-4	YBK3-315L1-4	YBK3-315L1-4
16		Rated Power	kW	132	132	160	185	185
17		Rated Voltage	V	660/1140	660/1140	660/1140	660/1140	660/1140
18		Rated Speed	r/min	1480	1480	1480	1480	1480
19		Rated Efficiency	%	95.4	95.4	95.4	95.4	95.4
